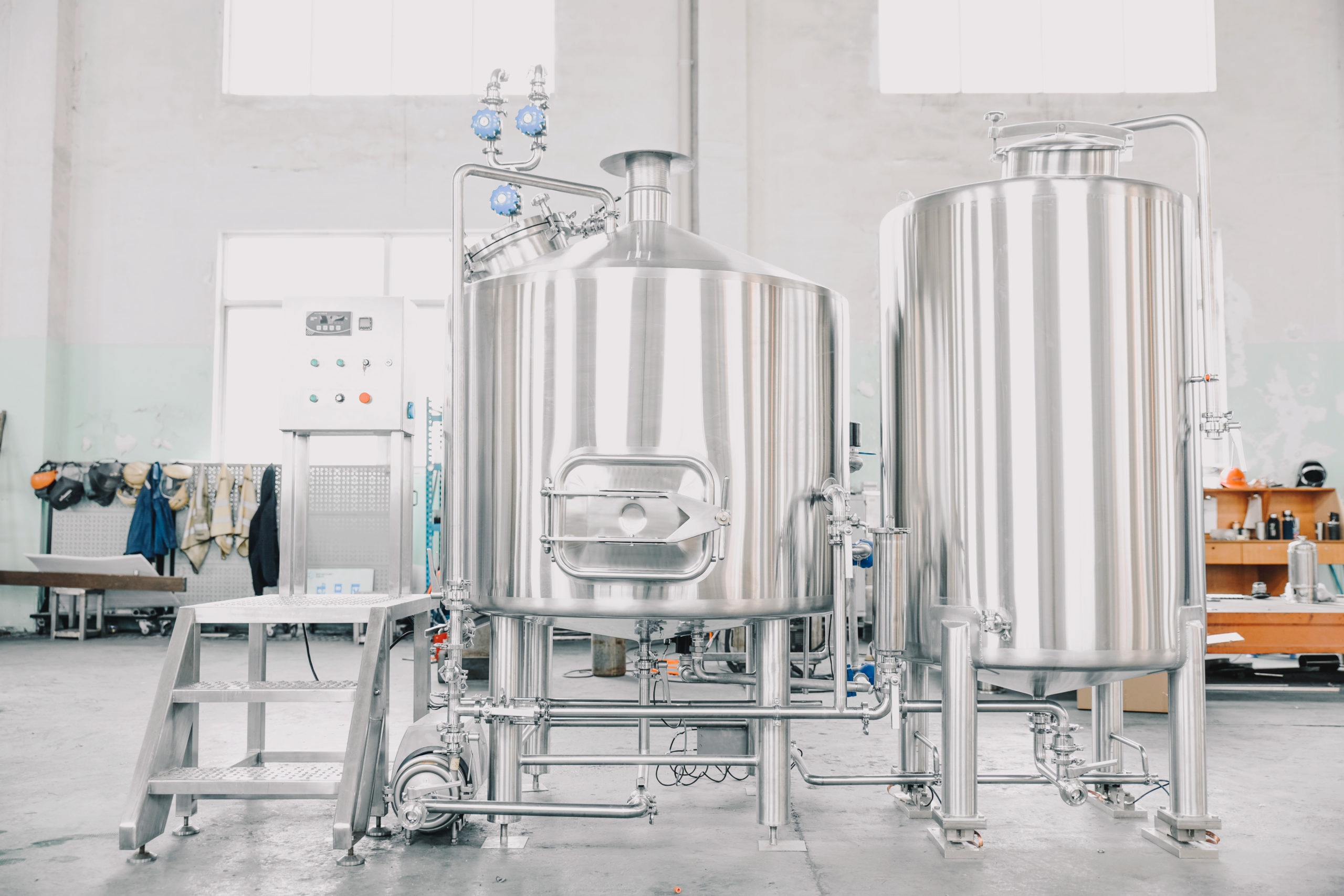

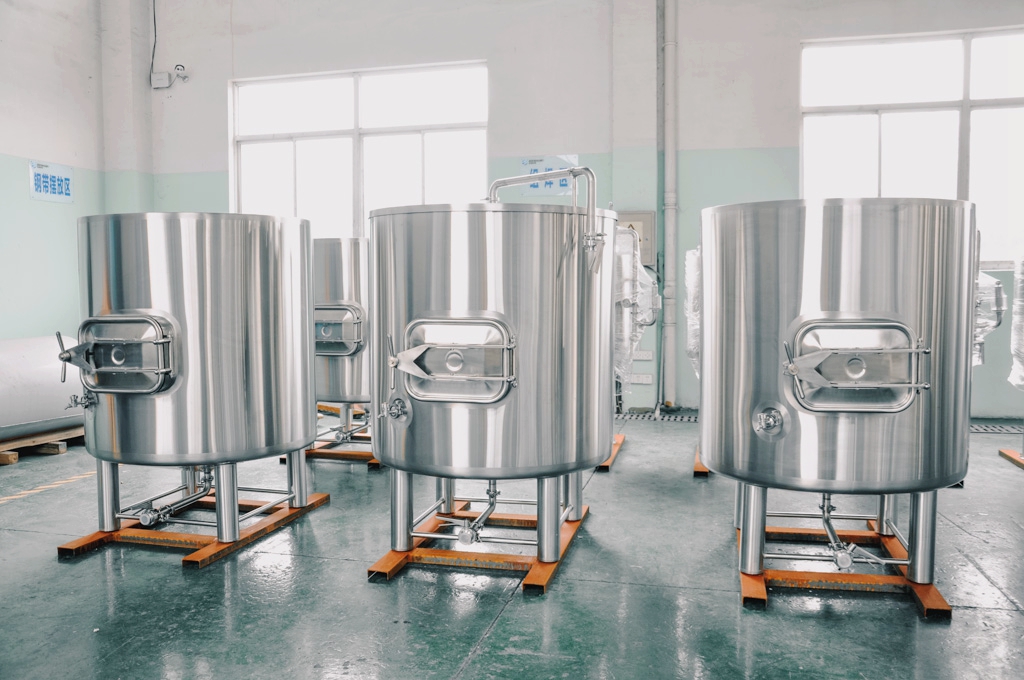

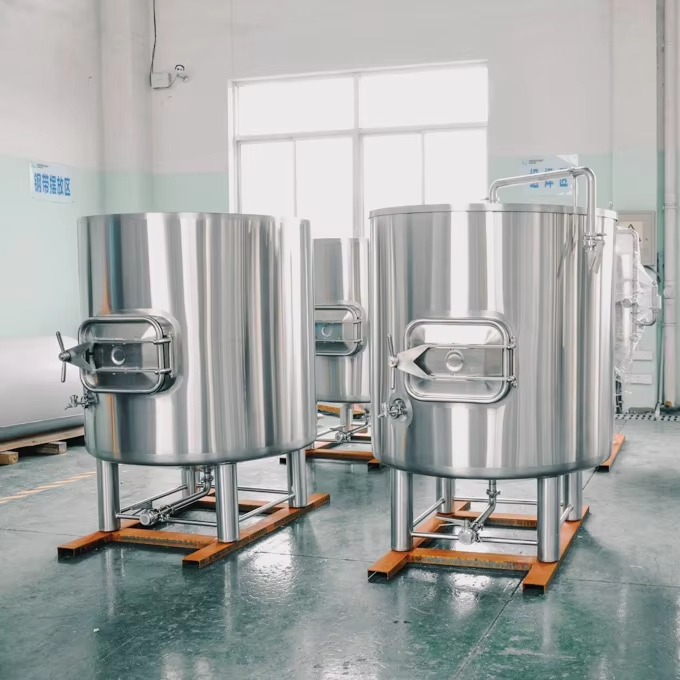

1000L 2000L 3000L Open-Top Kombucha Fermentation Vessels & Equipment

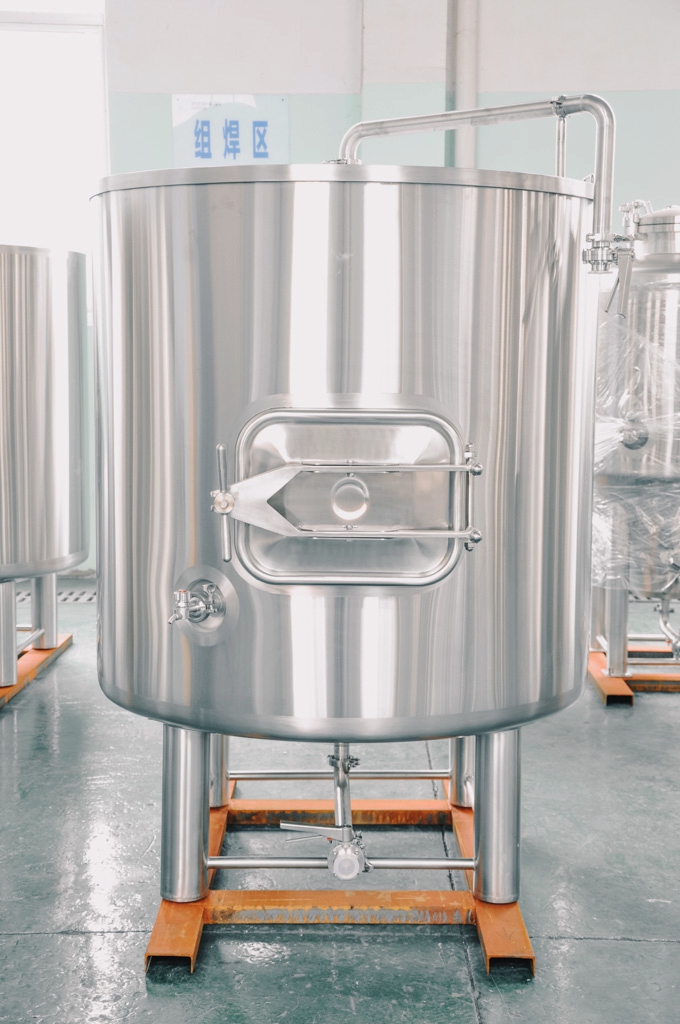

1000L Open Top Kombucha Fermentation Vessels
For the kombucha fermentation process, we designed kombucha fermentation vessels that are open-top as it is important for the fermentation process and allows for easily placing the SCOBY. We used the same side manways as we would do on a lauter tun at the bottom of the vessel, making SCOBY collection and redistribution efficient for the brewer. Designing the vessel with a glycol jacket allows for temperature control during fermentation. As these vessels were open-top, we also provided a removable lid that could be used for CIP purposes.
Kombucha Fermentation Equipment Features
- Top Manway
- CIP Spray Ball
- Pressure Vacuum Relief Valve
- Sample Valve
- Thermowell for Temperature Sensor
- One Level Gauge
- Cooling Jacket Sections
- PU-Foam Insulation
- Vertical Orientation
- Material, 304 Stainless Steel
- Inside Finish, 2B
- Outside Finish, #4
- Picked and Passivated Surface and Seam
- Internal & Exterior Welds, Grounded and Polished to #4

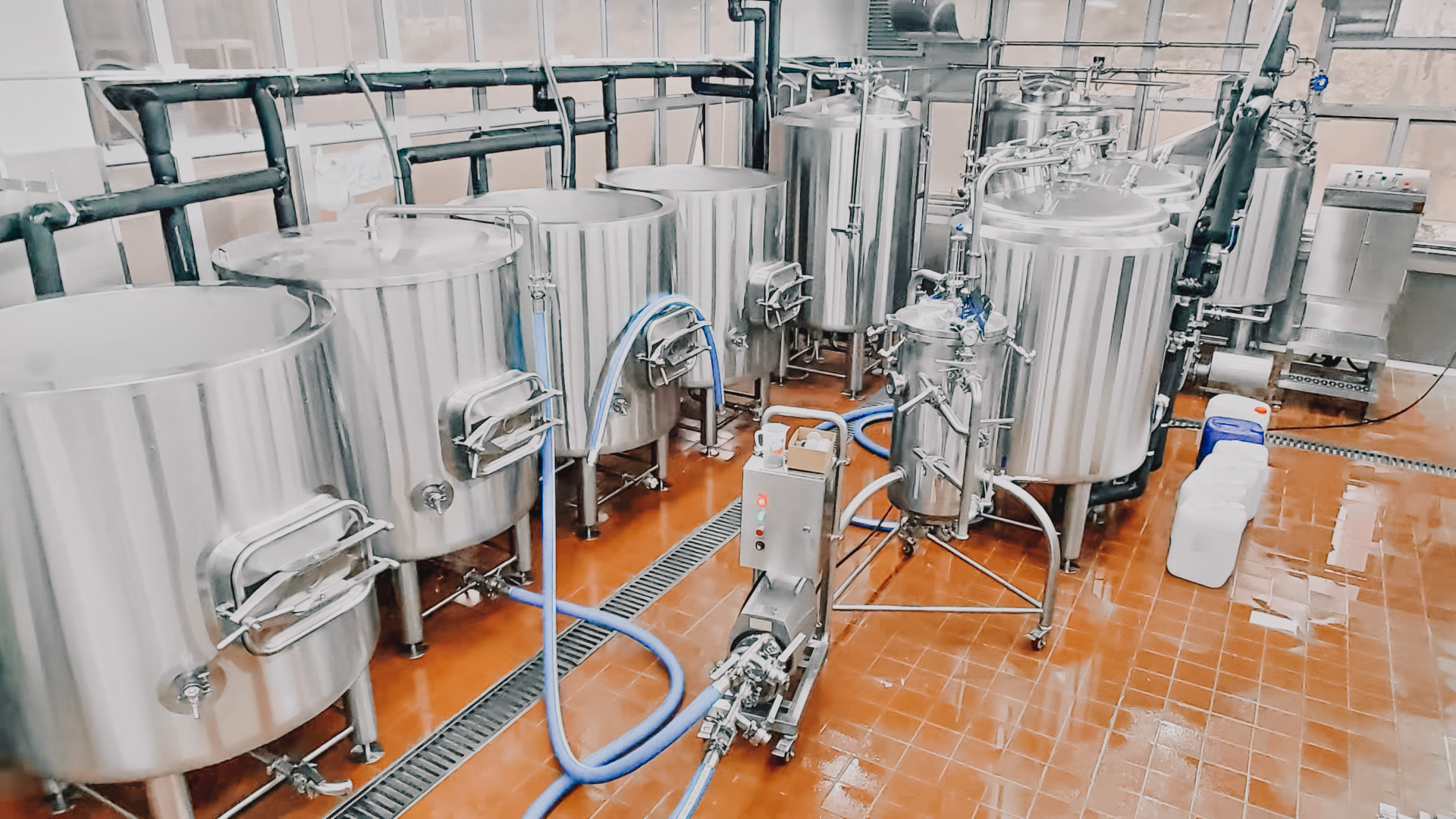

1000L Kombucha Brewing Equipment

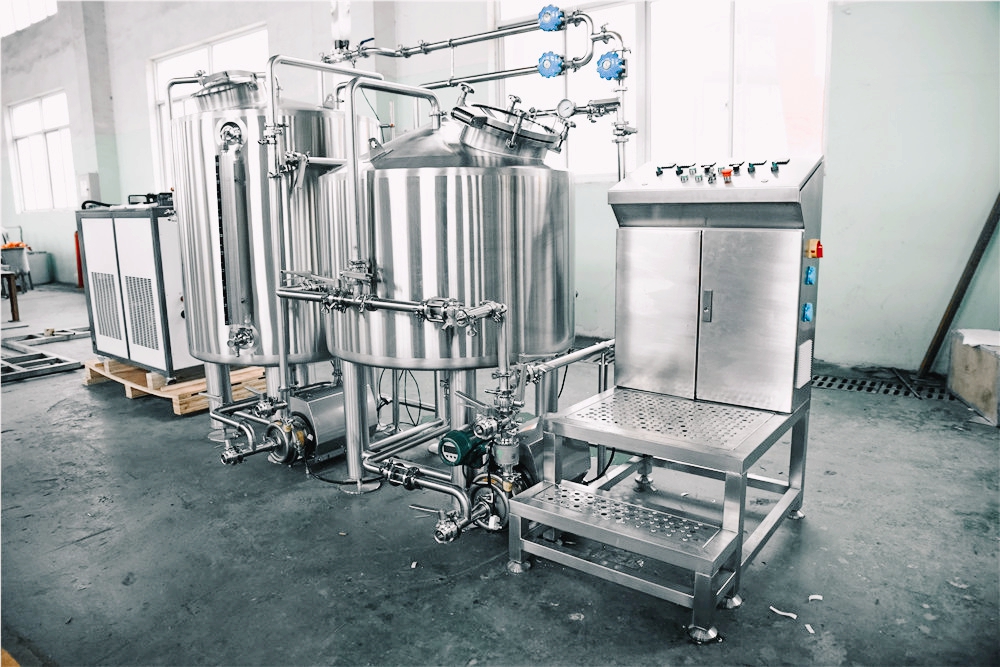

Including one steeping tank with working platform, hot liquor tank, open top kombucha fermentation tanks, brite tanks (also called the finish tanks), glycol cooling system (including one glycol tank, one glycol chiller and one pump). The glycol cooling system will be used for cooling temperature for the kombucha fermenter's and brite tanks, and also including the control panel system.
Technical Specifications & Parts

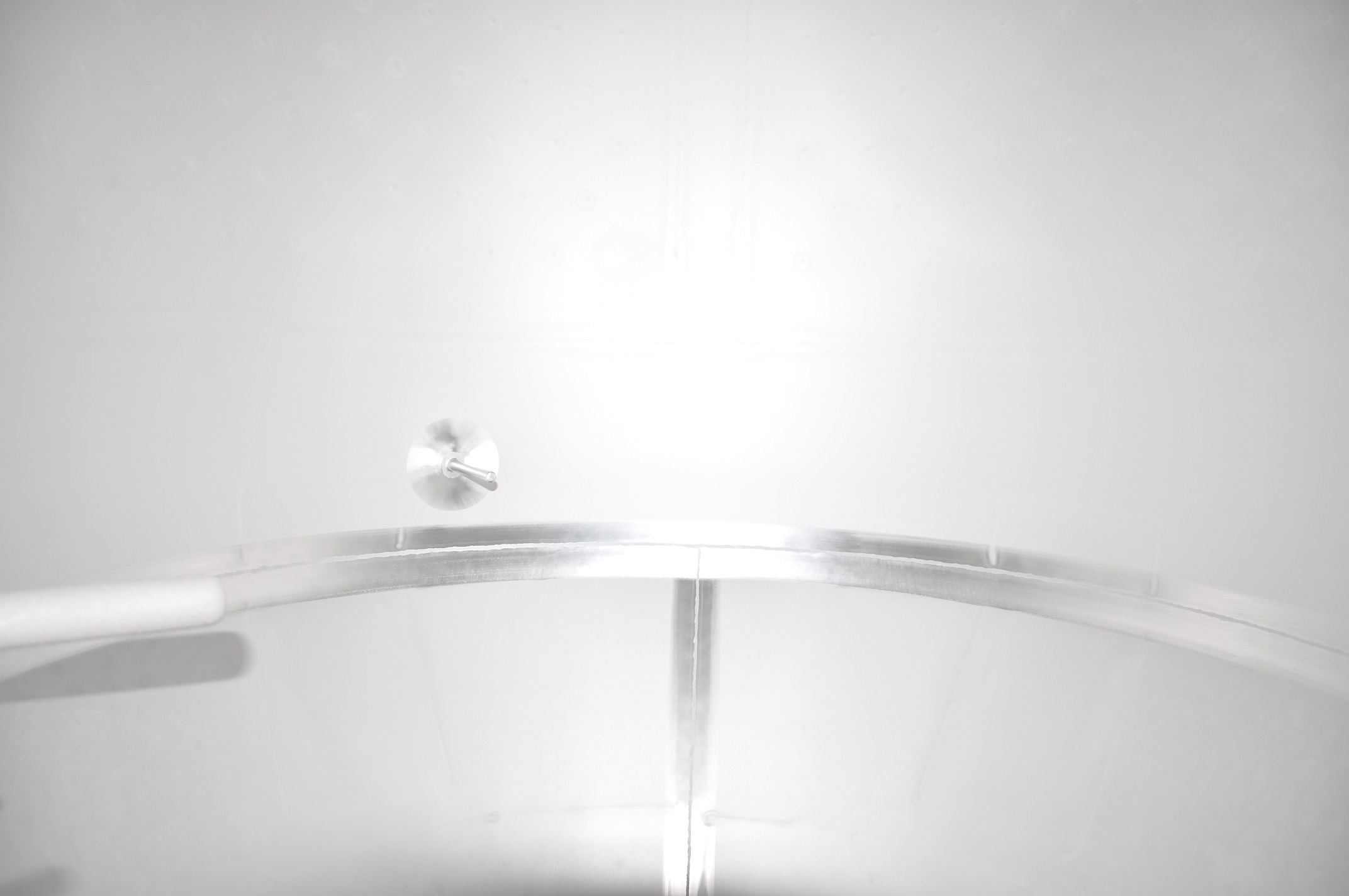

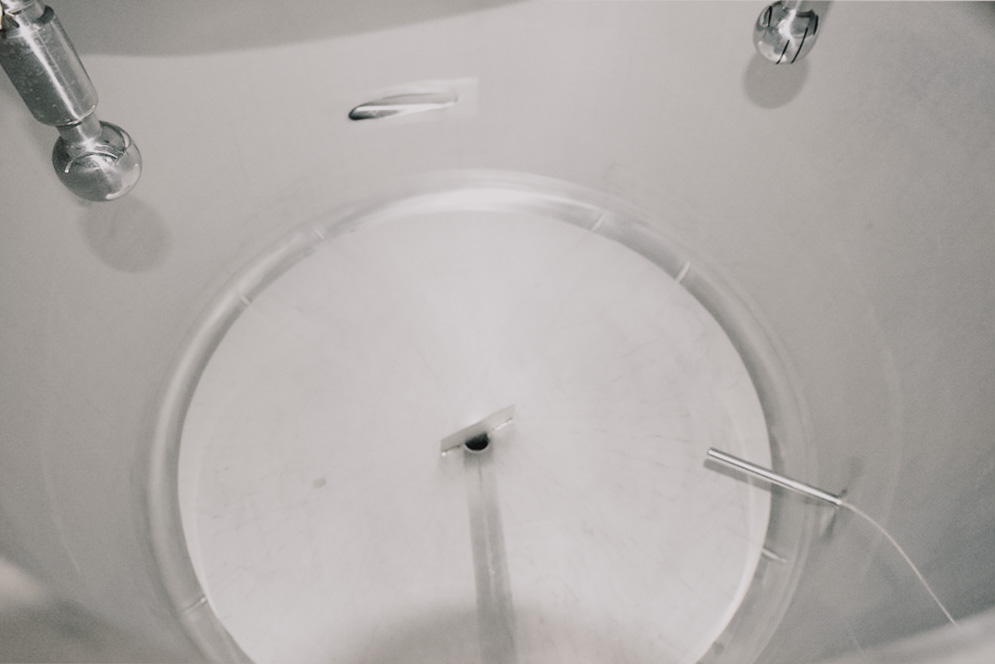

Inside of tank

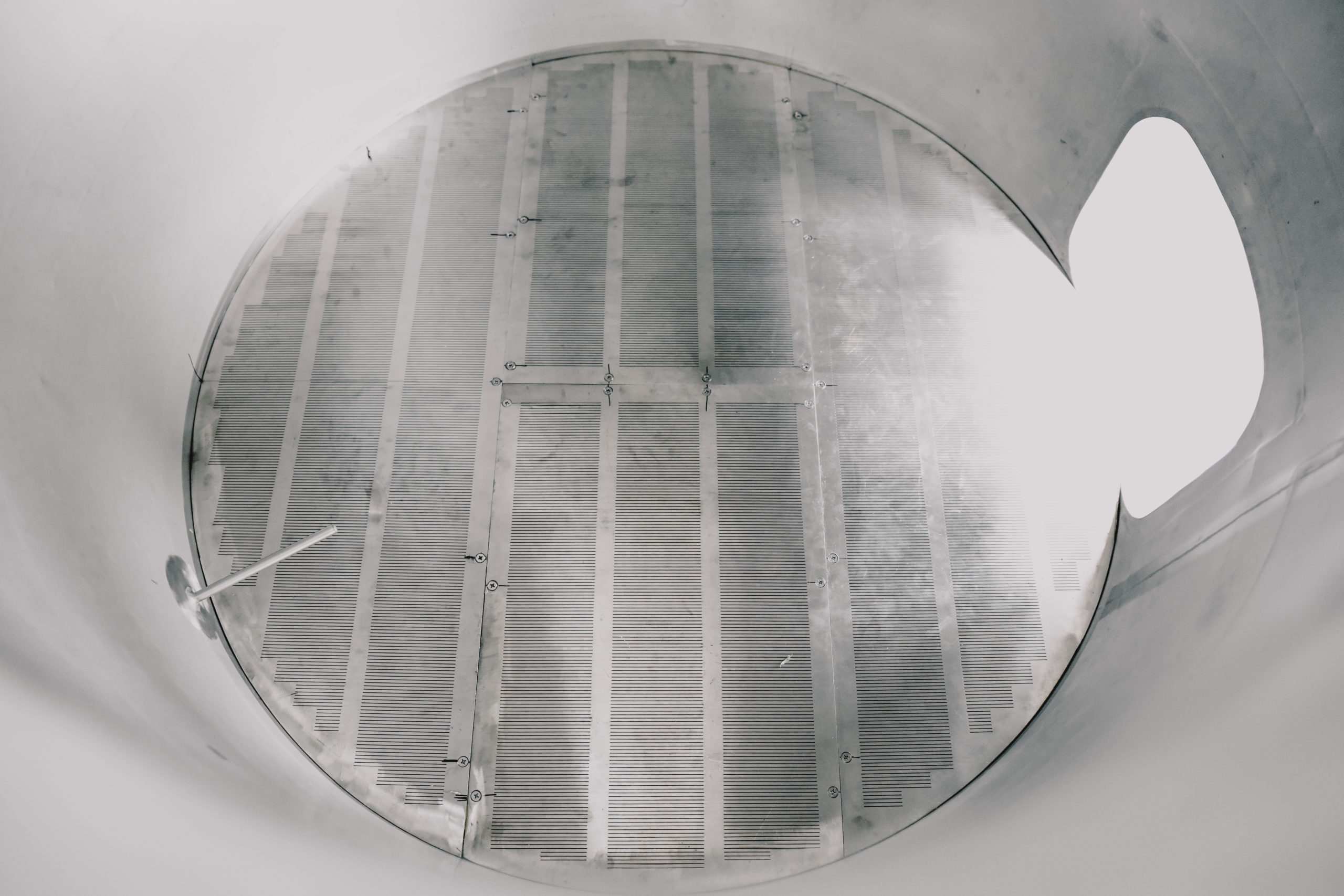

False bottom
Polishing
Racking arm
Carbonation stone
Sample valve
Kombucha brewing equipment including the tea steeping tank with working platform, hot liquor tank, kombucha open top fermentation tanks, kombucha brite tanks (also called finishing tanks), glycol cooling system, control panel, pumps and so on.
| Item |
Specifications |
| Capacity |
200L-5000L |
| Pressure |
Atmospheric pressures |
| Material |
SUS304/SUS316L |
| Cooling way |
Dimple jacket cooling |
| Thickness |
2-4mm |
| Bottom |
Conical bottom |
| Manhole |
Side rectangle manhole |
| CIP washing |
CIP arm, with rotary spray ball |
| Outlet |
Liquid outlet and drain outlet |
| Sample valve |
Sample valve |
| Polishing |
0.6 micron inside, brushed board outside |
Packing & Delivery
Packaging & Shipping
1. All equipment is packaged to meet sea shipping requirements.
2. We provide two packaging forms: iron frame packaging and wooden packaging, which are packed according to the transportation terms.
3. We guarantee the safety of your goods, providing professional, environmentally friendly, convenient and efficient packaging services.
Our Professional Services
We provide 7*24 hours pre-sales and after-sales services
1. Pre-sales
1). We provide free solutions for your project.
2). We will provide drawings for your reference according to your requirements.
3). We provide free floor plans according to the size of your factory.
4). We provide a pre-container plan for your order.
5). We support customization services.
2. After-sales
1). We provide free online installation support for your order.
2). We can send engineers to your site for installation.
3). The warranty period of our main equipment is 3 years, and the warranty period of auxiliary parts is 1 year.
4). We provide lifetime maintenance services.
5). We provide customers with on-site training services.
Why Choose Our Equipment
1. Our engineers have more than 15 years of industry experience.
2. Our workers have more than 20 years of welding and polishing experience.
3. We use raw materials from famous brands, and the deviation of our stainless steel plates is very precise, ±0.1mm.
4. We use auxiliary machines and accessories from internationally renowned brands, such as ABB motors, Siemens PLC, Schneider Electric components, IFM flowmeters, Omron thermometers, etc.
5. We provide customers with on-site training services.
6. We design systems that are in line with user operational needs by prioritizing practical, real-world utility.
7. We are committed to providing high-quality products and services.
8. We pay meticulous attention to technical details.
Frequently Asked Questions
Are you attending industry exhibitions? Which ones do you go to?
Yes, we attend the main wine and beverage industry events in the US, Canada, Australia, France, etc. For owners and winemakers who do not have time to go to the shows, we are happy to pay a site visit and discuss physically with them about their project requirements.
Does your equipment come with a warranty? What kind of after-sales service is provided?
Yes, all tanks and fermenters have a 36-month warranty. During this period, customers will enjoy free replacement parts and support if any issue arises. We also provide online support and can send engineers for site installation.
Are you hiring global agents? What are the application conditions?
Yes, agents are quite welcome. To become our agent, we require that you are familiar with the beverage/brewing industry or are fond of this line of business, and you must be strongly customer-oriented.
What are your working hours for customer support?
We have flexible working hours to suit customers from different time zones worldwide. Please feel free to reach out whenever you need assistance.
Can the kombucha tanks be customized?
Yes, every tank can be custom-made to your specific needs. We are happy to integrate your ideas with our engineering expertise. The customization design service is free of charge, and you will sign off on the final drawings before production begins.
How long is the typical lead time for production?
Our normal production lead time is within 40 days after order confirmation. This timeline does not include sea shipping transit times.
