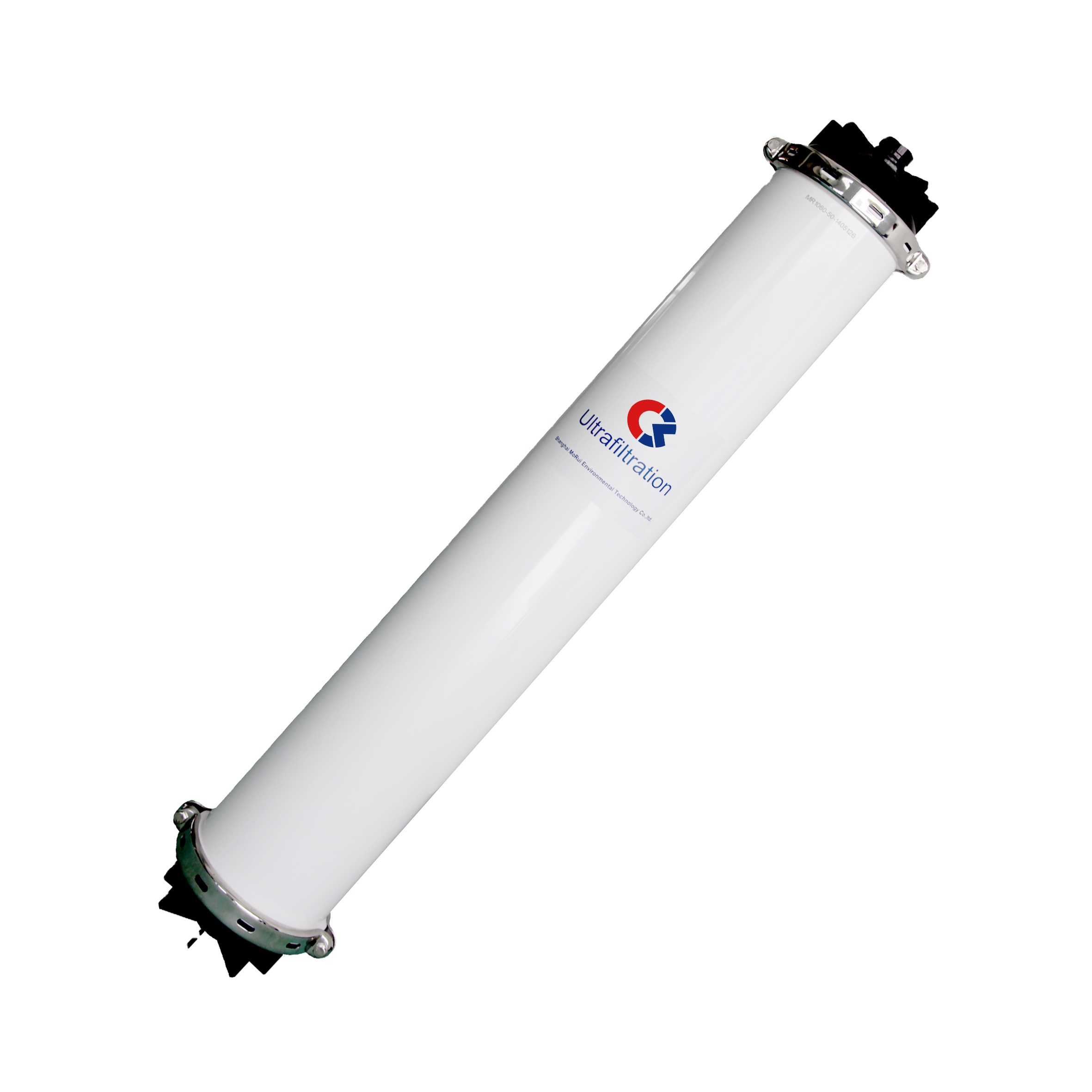

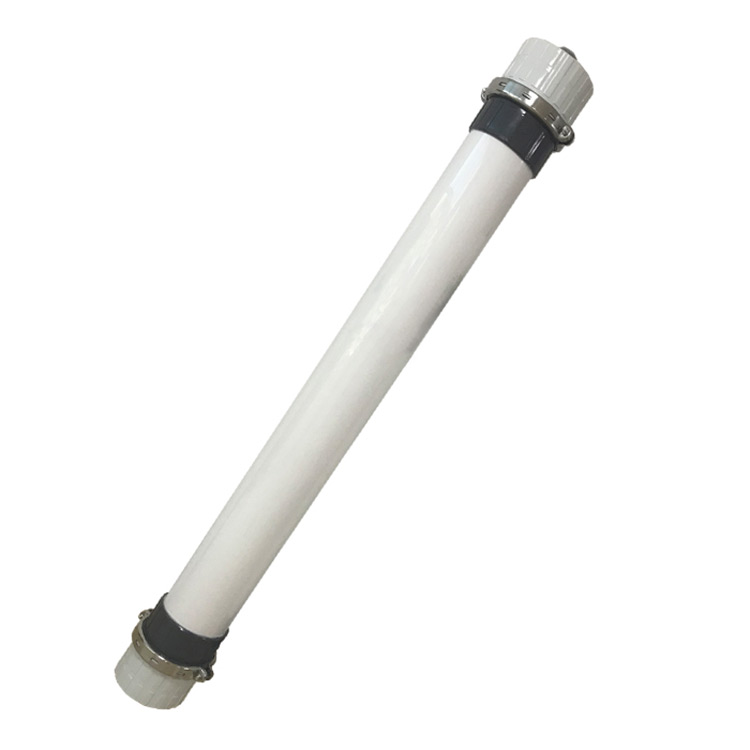

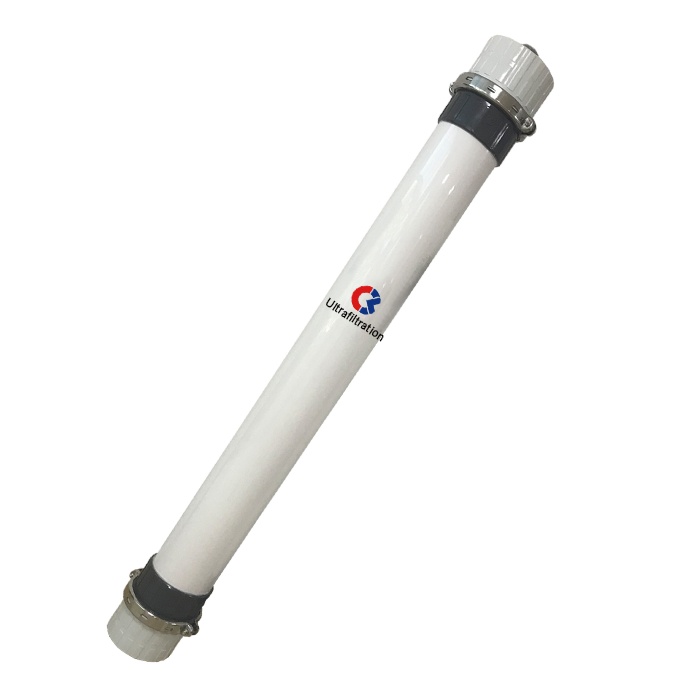

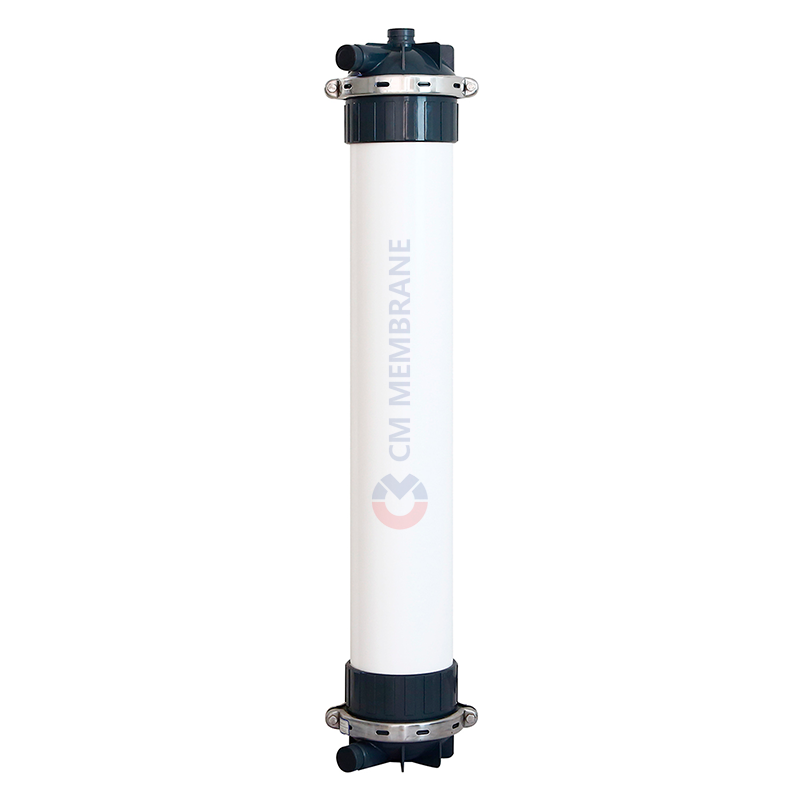

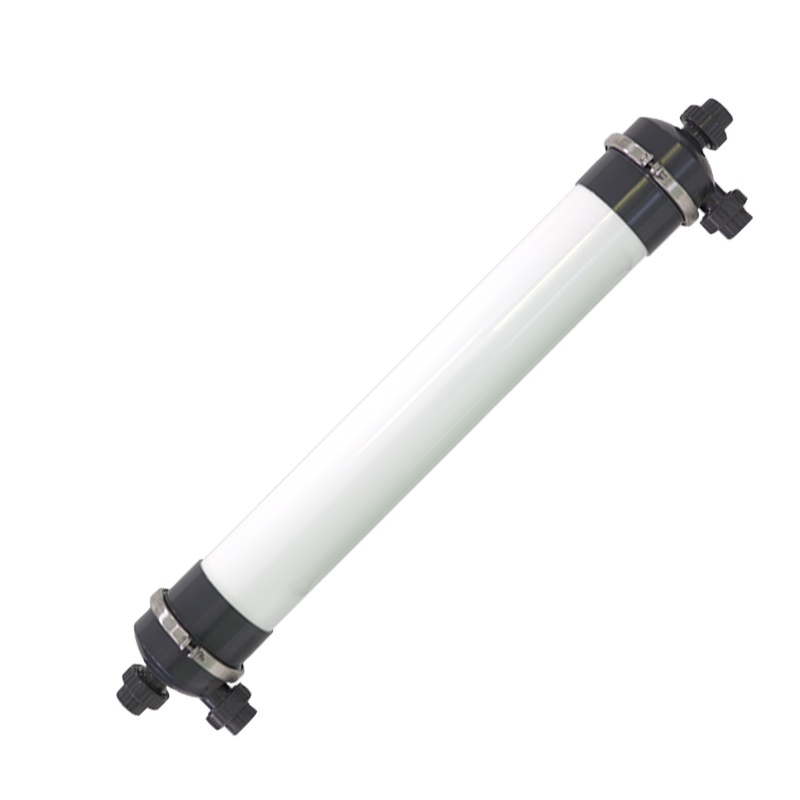

Hollow Fiber UF Membrane Water Purification PVDF/PAN/PVC Ultrafiltration Membrane UF-160

Product Description

Product Parameters

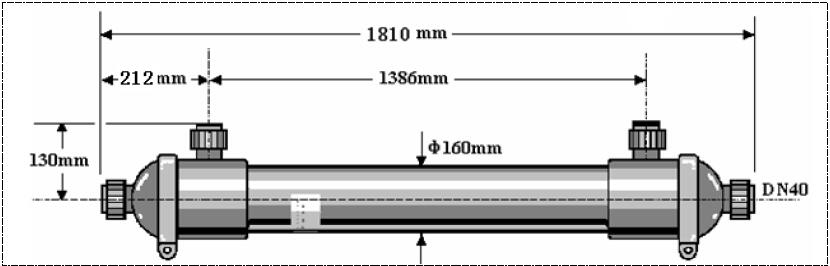

Product Parameters Overview
Item No. Normal item Type Effective area(M2) Design flux L/M2/H Material
UF-0660 UF-160 inside-out 18 40-120 PAN / PVC

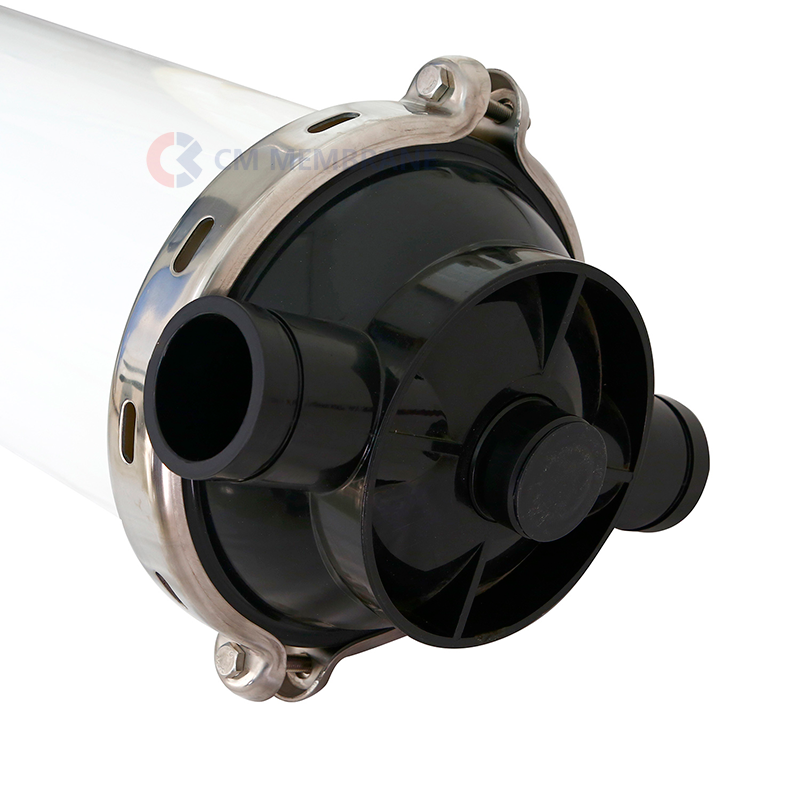

Product Feature detail 1

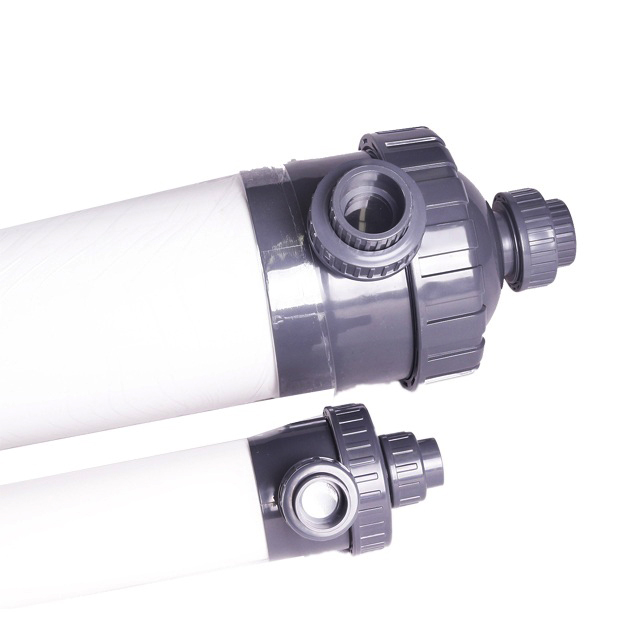

Product Feature detail 2

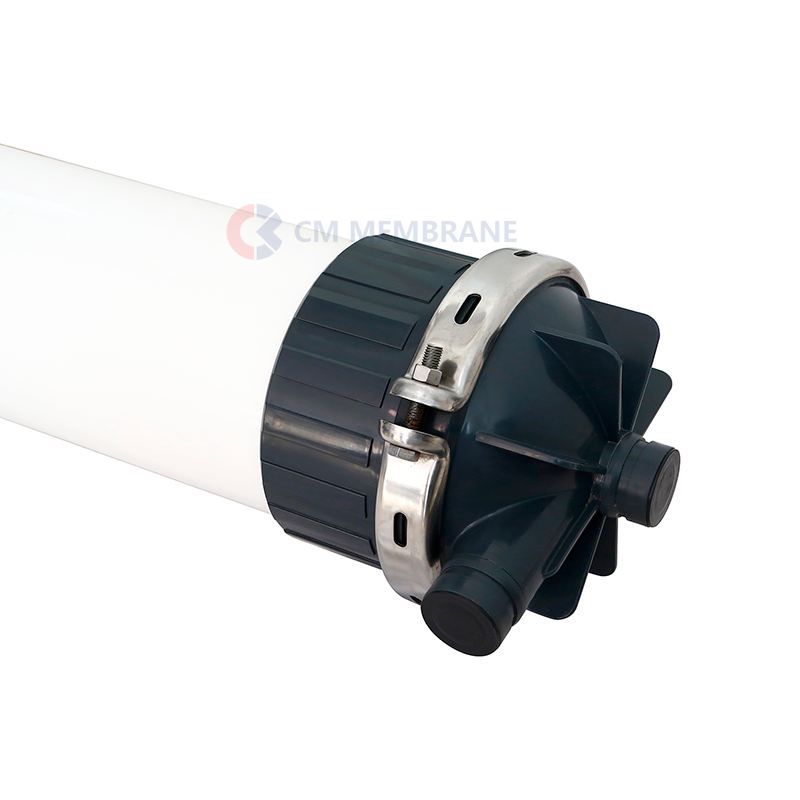

Product Feature detail 3

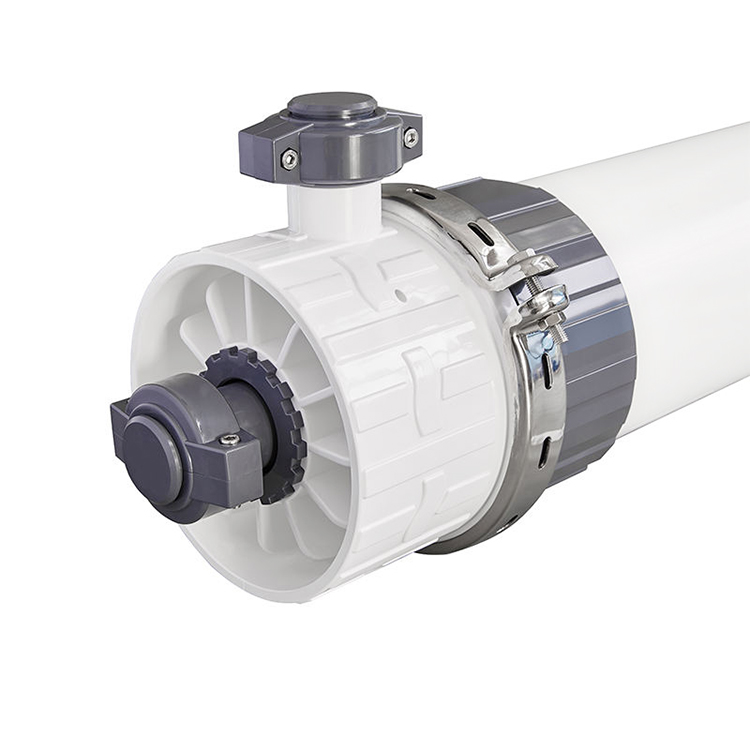

Product Feature detail 4

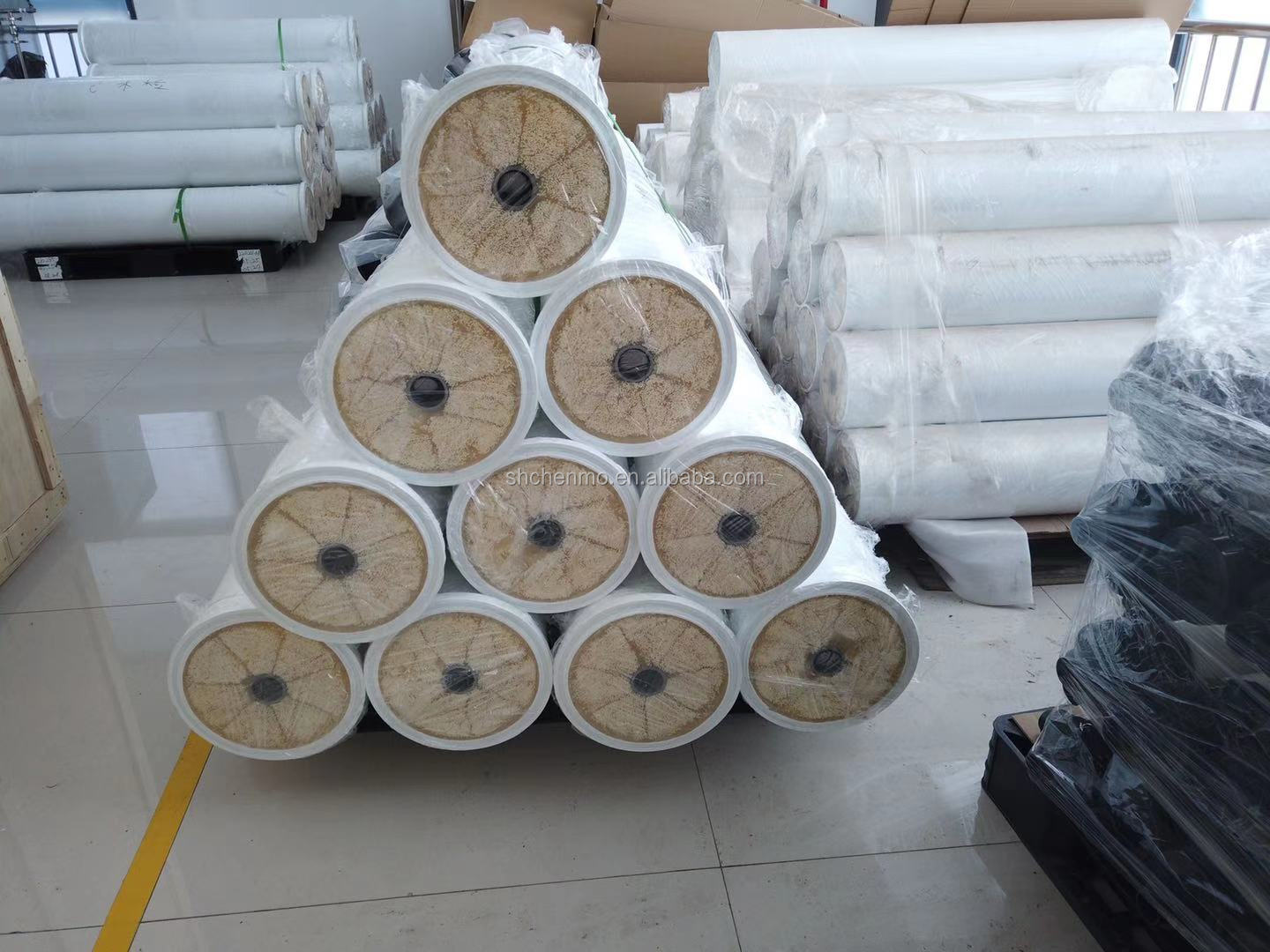

Product Feature detail 5

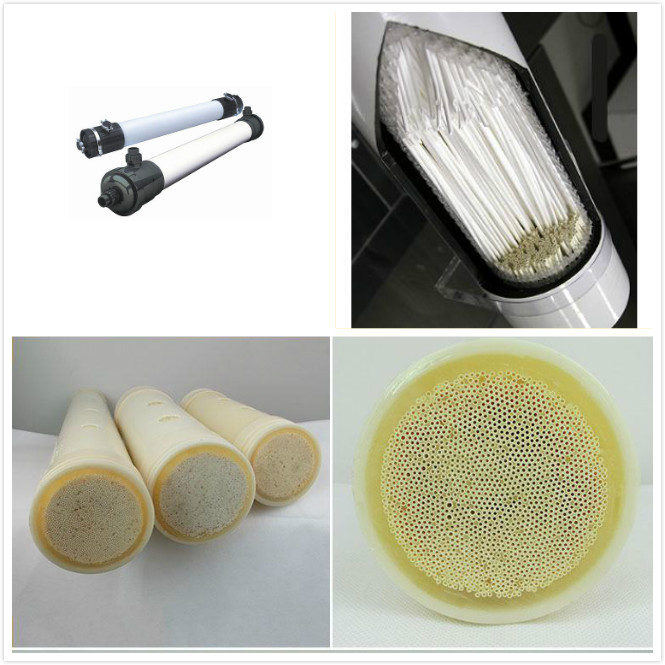

Product Feature detail 6
Material PES PVDF PAN
Module (Inside -out) (Inside -out) (Outside-in) (Inside -out)
Membrane diameterID/OD(mm) 1.0/1.6 0.7/1.3 0.7/1.3 1.4/2.2
Maximum feed turbidity <50NTU <100NTU <80NTU
PH range 2-10 2-12 2-10
Temperature range( degrees) 5-45
Operation module Cross flow or dead-end
Maximum permeate flux 120L/m2*h 150L/m2*h 150L/m2*h
Maximum feed pressure 0.5Mpa
Maximum back wash pressure 0.25Mpa
Back wash frequency 15-60 min
Back wash duration 30-60 sec
Back wash flux 100-360 L/m2*h
Chemical cleaning frequency 30-180 day
Chemical cleaning duration 90-480 min

Product Description

Ultrafiltration (UF) is a separation principle for screening, with pressure as the driving force to realize mechanical separation membrane separation process, namely under certain pressure, when the mixed solution of large molecules or a small molecule solute through the membrane surface, solvent (e.g., inorganic salt) and small molecule solutes through the membrane, and the solute molecules due to mechanical filtration membrane as concentrate intercept. To achieve the purpose of purification, separation and concentration.

Hollow fiber ultrafiltration membrane is an important form of separation membrane. The membrane pores are capillary and the micropores are located on the wall of the tube. The solution is based on whether its components can be purified, separated and concentrated through these micropores. Among the membrane components per unit volume, hollow fiber membrane has the largest effective area, high filtration and separation efficiency, easy cleaning, simple structure, easy operation and low price. The production process does not produce secondary pollution, so it is widely used.

Certifications

Certification Documents 1
Certification Documents 2

Packing & Delivery

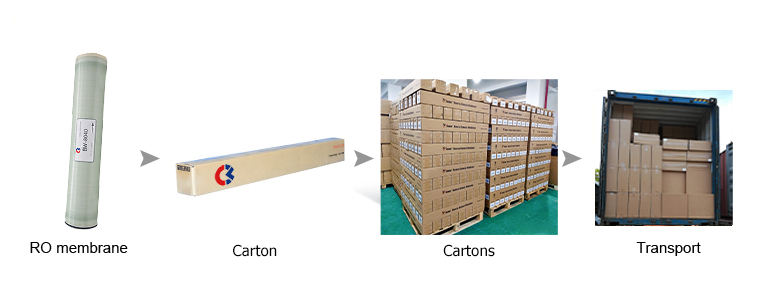

Packaging Standard Details

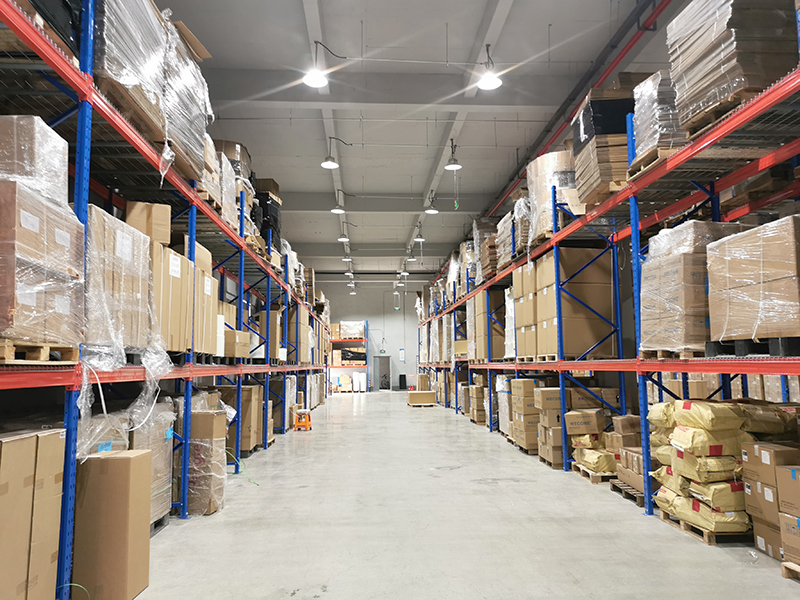

Warehouse Storage

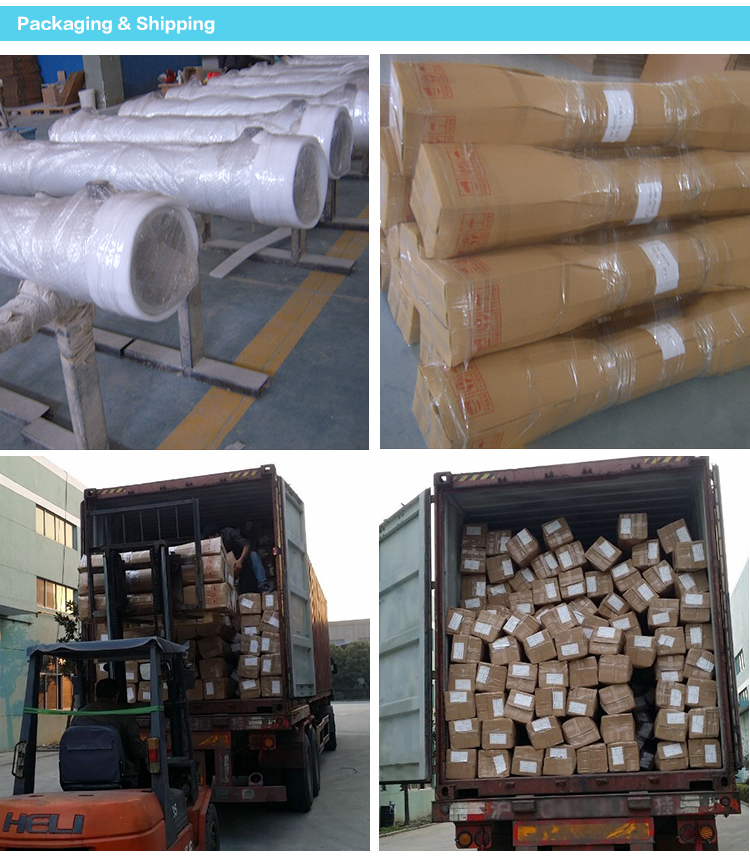

Shipping Logistics

Company Profile

Company Office Building
Our Company

We are mainly engaged in ultrafiltration membranes, nanofiltration membranes, reverse osmosis membranes, seawater membranes, membrane bioreactors, and sewage treatment systems, as well as pure water preparation and sewage treatment projects.

We have more than ten years of production and export experience, products have professional certification, and hold a number of patent technologies. The products are exported to more than 40 countries and regions.

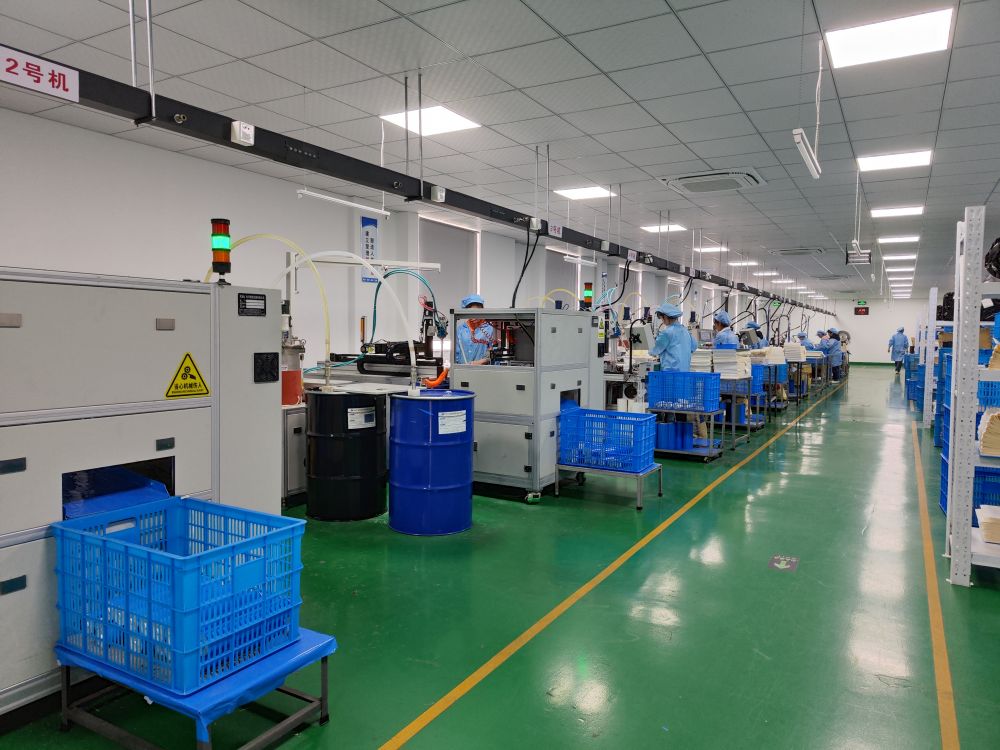

Production Workshop 1

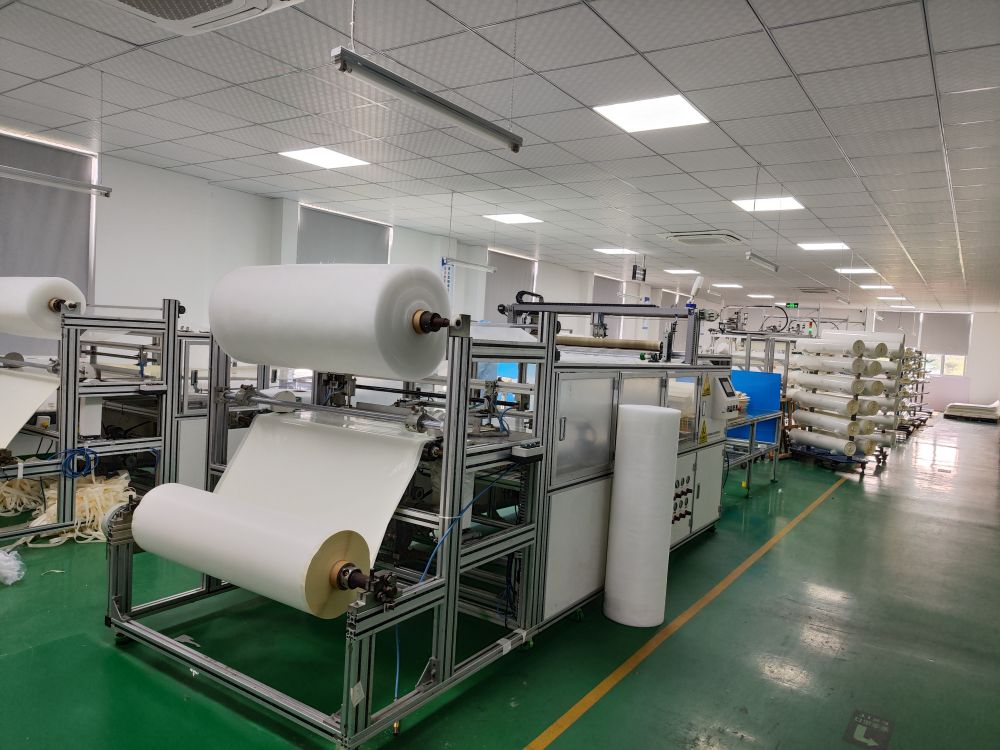

Production Workshop 2

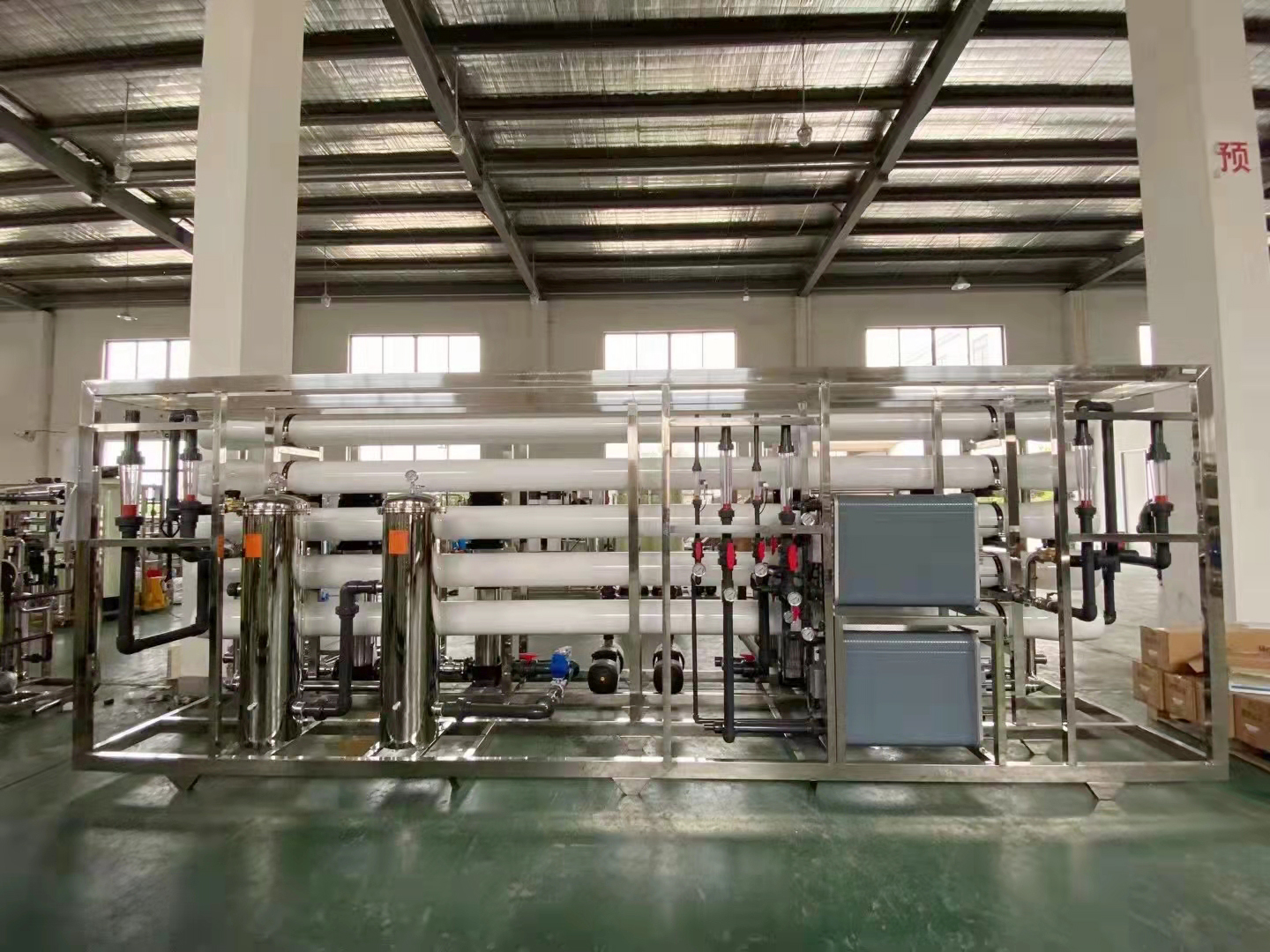

Production Workshop 3

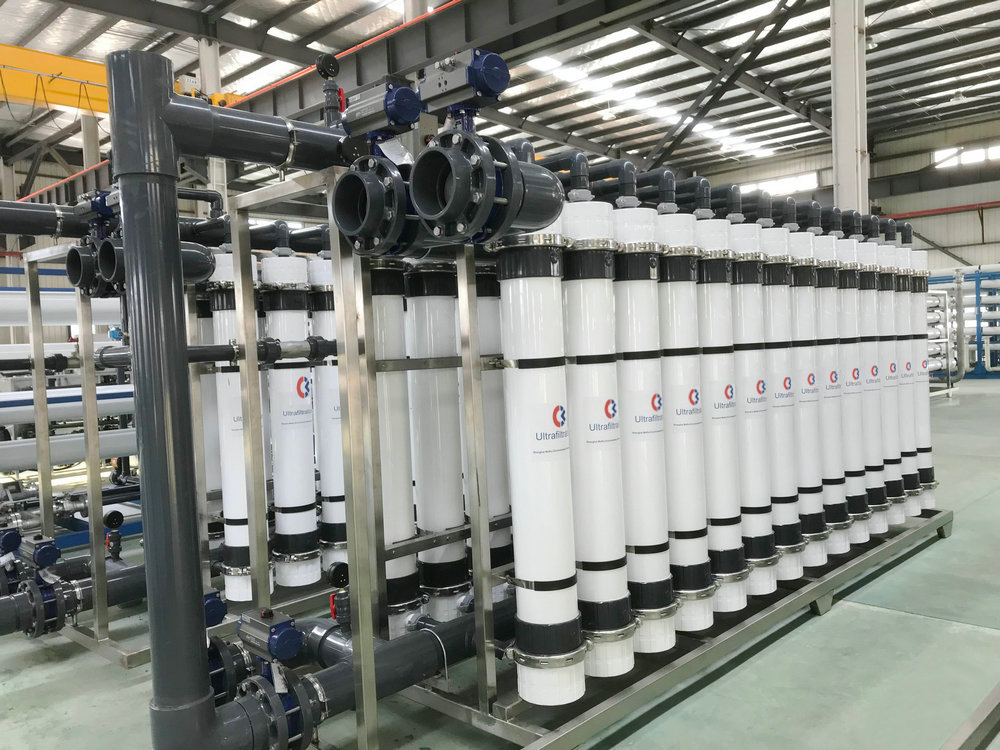

Quality Testing 1

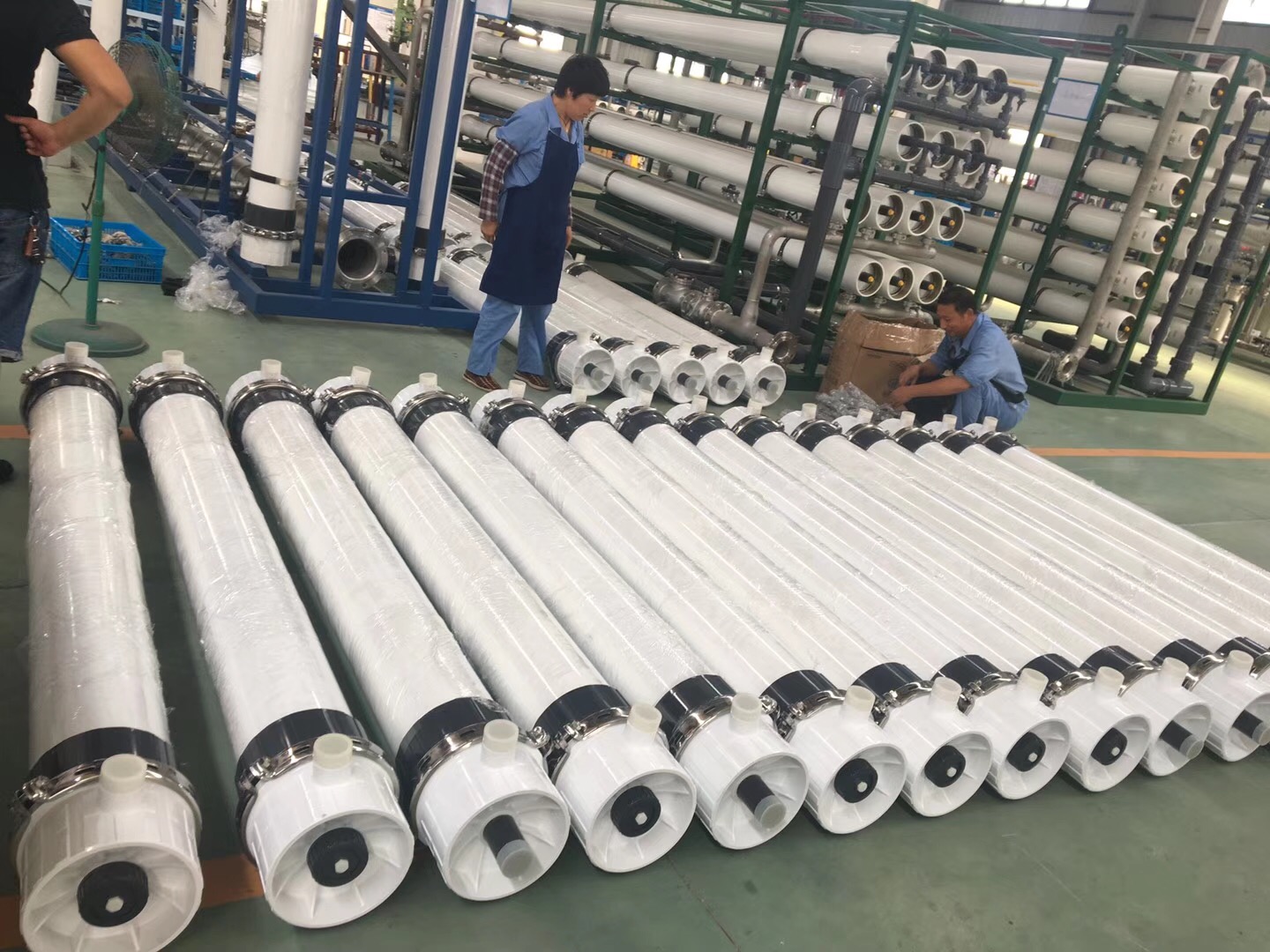

Quality Testing 2

Exhibition

Trade Show and Exhibition Booth

Frequently Asked Questions

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer founded in 2008.
Q2: What's your main products?
A: We provide Residential, Commercial and Industrial water treatment as well as relevant spare parts.
Q3: Do machines have any certifications?
A: Yes, all products are CE certified. Some even ISO certified.
Q4: How long does production take?
A: Sample orders are prepared within one week; large orders take 15 to 25 days.
Q5: How long is the warranty?
A: The warranty is 1 year for products, excluding cartridges.
Q6: Is OEM service available?
A: Yes, we welcome OEM projects.
